In this blog, we discuss the journey taken to implement support for R in Texera. Most notably, we allowed support for table and tuple API with R in Texera.
Motivation
The R programming language is widely used in many fields, such as bioinformatics, statistical analysis, and social science. Its popularity is driven by its capabilities and the growing demand for data-related work. Given its significance, our goal was to allow users to seamlessly integrate R into Texera workflows.
We want to enhance Texera by extending its support to include R code and facilitating the creation of R user-defined functions (UDFs) for both the table and tuple APIs. Doing so would mirror the functionality of Python UDFs, allowing both experienced and new users of Texera to leverage R in their work.
Challenges
The current support for R UDF in Texera utilizes Python User-Defined Functions and rpy2 (a Python library to use R in Python) to incorporate R code. However, this approach has two limitations, compatability and performance.
Challenge 1: Compatibility
The first challenge we faced was compatibility issues between R and Python. While rpy2 is used to call R from Python, some R packages also internally call Python (e.g. reticulate), causing compatability issues between the two systems. Therefore, we have to make sure any compatability issues were resolved.
Challenge 2: Performance
The second challenge we faced was performance issues in the previous design. Data in Texera travels down from Java to Python to R and then back up in the opposite direction. In the old design, multiple rounds of serialization, deserialization, and copy operations were done on the same data, creating significant overhead. We wanted to eliminate this as much as possible in our new design.
Initial Design
Arrow Flight and the Flight Server-Client Model
Our original objective was to employ Arrow’s Flight module in order to develop a native R Flight client-server model. The implementation of such a model presents several advantages, paramount among them being the standardization of frameworks for both R UDF and Python UDF. Notably, the Python UDF framework already utilizes its exclusive Arrow Flight client-server model. Adopting a similar approach in R would streamline maintenance and future development. Moreover, Arrow Flight’s in-memory data-transfer capabilities significantly enhance performance, facilitating rapid operations within data-intensive workflows.
However, we discovered the following from the R Arrow Flight documentation:
“At present the arrow package in R does not supply an independent implementation of Arrow Flight…”
Instead, R Arrow Flight operates by invoking methods from the PyArrow Python package, including the code for running a Flight server in R. The most critical issue with this realization is because we wanted R UDF to be executed on the Flight server side. Due to the lack of a native R Flight server, this goal no longer was feasible.
Regrettably, as of July 14, 2024, there was still no independent implementation of Arrow Flight. Currently, the R Arrow developers have no immediate plans to do so as well, as shown in their biweekly meeting notes. Consequently, we had to devise an alternative solution for R UDF that leverages Arrow and rpy2 alone, eschewing Arrow Flight.
Our Proposed Design

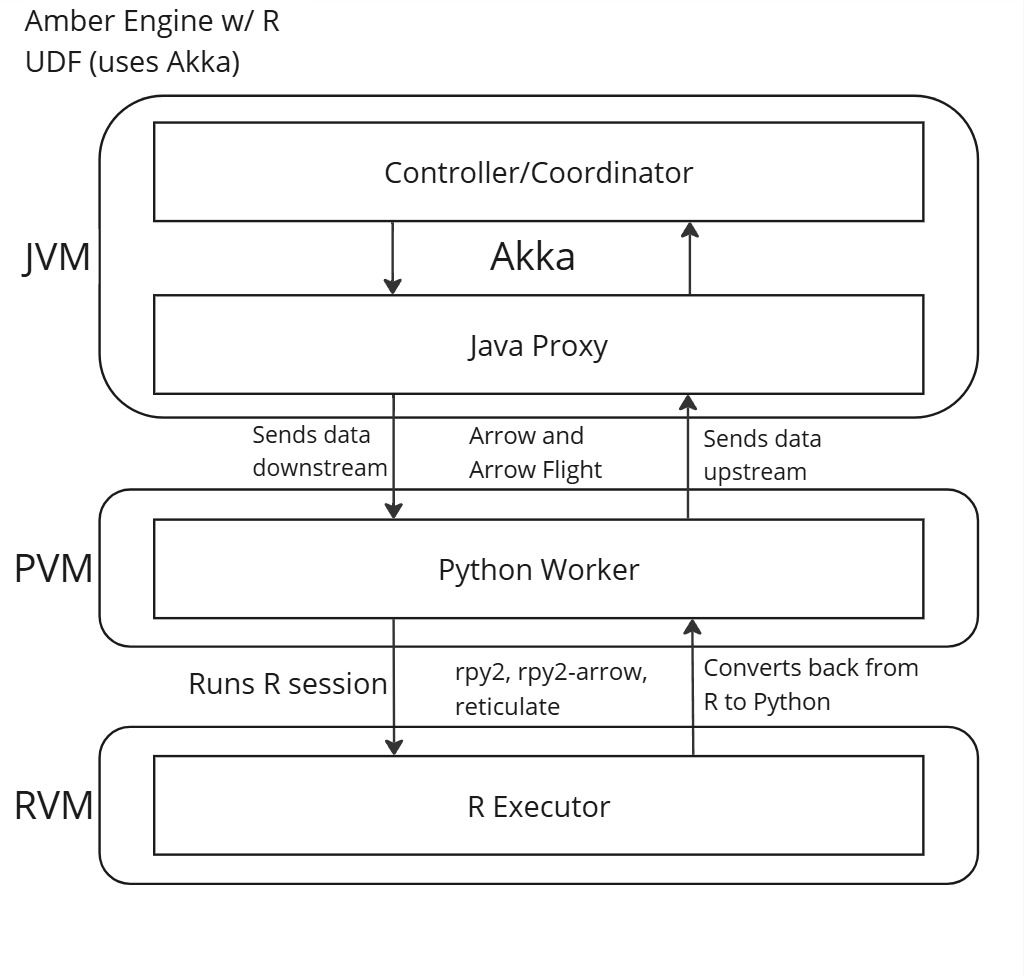

Our proposed architecture features a three-layered design, where the data flows from Java to Python, then to R, before returning back to Python and Java. An illustration of this architecture is in Figure 1 below.
The core of the design for R UDF relies predominantly on rpy2 and rpy2-arrow, with both playing an essential role in ensuring smooth and consistent conversions between Python and R. In this architecture, the Python Worker uses rpy2 to run an embedded R session. Data sent downstream from the JVM to Python is then transfered to R using rpy2 and rpy2-arrow.
After the R Executor finishes running, both rpy2 and rpy2-arrow convert the returned values from R back to Python. The Python Worker then processes the returned data as necessary and transmits it back upstream to the JVM.
Solving Challenge 1: Compatibility
As mentioned previously, R and Python had compatabilility issues stemming from the fact that they were able to portions of each other at the same time. The biggest example of this issue pertained to the concurrent use of reticulate (an R package to use Python within R) and rpy2. In 2018, an issue was reported on GitHub highlighting a compatibility problem when using both libraries simultaneously.
The primary issue was from conflicting lock files between Python and R threads, causing deadlocks as either reticulate or rpy2 would lock either the session of Python or R, preventing the other from accessing it. We were pleased to discover that this issue was resolved in 2022, allowing the concurrent use of rpy2 and reticulate. Further details can be found here.
Additionally, we realized that each block of R code executed through rpy2 ran in its own miniature, containerized environment. This isolation helped to avoid compatibility issues with libraries, particularly when testing workflows with multiple R UDF operators, each having its own separate R environment.
Solving Challenge 2: Performance
To address performance issues, we needed an effective method to bridge R, Arrow, and Python together. We found that the rpy2-arrow library, developed around 2020, functioned well for our purposes.
A significant advantage of rpy2-arrow is its adaptation of the Arrow RPC framework, which enables in-memory operations on Arrow data. Furthermore, rpy2-arrow achieves maximum efficiency by using pointers extensively, encouraging use of zero-copy operations. These advantages greatly reduce data transfer overhead between different langauge environments.
rpy2-arrow is also an extension of the rpy2 library, providing smooth usage when used together.
A Demo Workflow of R UDFs

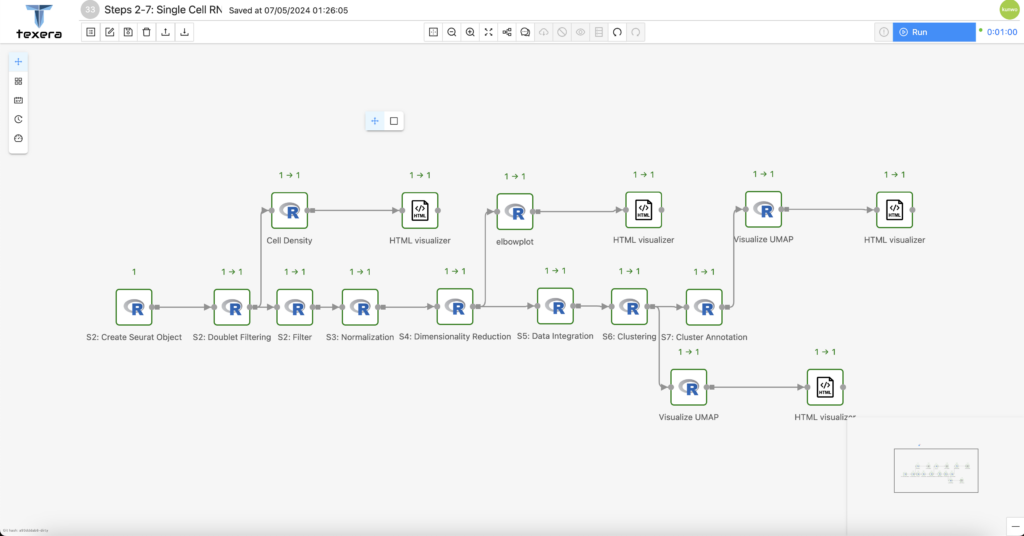

As a showcase of the successes of our proposed design, below in Figure 2 is a sample workflow created by one of our users that exclusively uses R UDFs, all of which employed the tuple API.
This demo workflow was used in a research project intended to conduct Single Cell RNA analysis with R. The main driver for conducting the analysis came from the Seurat package, which contains the eponymous Seurat object, an object that can store extensive data about single cells. In this workflow, the created Seurat object was frequently used as both input and output. Each step in the workflow utilized R UDFs to modify, extract, or inspect the Seurat object in some way, as can be seen from the labeled steps assigned to each R UDF operator.
Moreover, the branching sections of the workflow featured visual aids extracted from the Seurat object as output. These visualizations were then promptly embedded in HTML code created by their preceeding R UDF operators.
Supported R UDF APIs
Tuple API
What is R UDF Tuple API?
The tuple API allows R code to process and return individual tuples one at a time, making it especially useful for stream-like data interfaces.
How does R UDF Tuple API Work?
The goal of the tuple API is to enable users to write an R generator that yields an R Tuple or any structure convertible to an R Tuple. This is done through R’s coro package, which supports writing Python-like generators in R. The written generator receives two arguments: the tuple itself and the port. Currently, the port argument is unused but may be utilized in the future. Lastly, users can also yield zero, one, or multiple tuples.
In the backend engine, the returned R Tuple is converted into a Python Tuple, with automatic type conversion and serialization from R to Python. When the next operator receives the Tuple, it is split into two subsequent Tuples: one containing non-binary data and the other containing binary data. The non-binary Tuple is converted into an Arrow StructArray, leveraging Arrow’s advantages. The binary tuple undergoes manual deserialization to retrieve the original object(s). Finally, both Tuples are combined and passed into the R UDF as an argument. Note that for each Tuple, we only use one serialization and deserialization operation, thereby improving performance.
When should R UDF Tuple API be used?
Users should employ the tuple API when they need to process, modify, or inspect data in individual units. Another suitable use case is when users want to quickly process data without waiting for an entire chunk as required by the table API.
Tuple API: Example Code
Below is a simple example of using the tuple API in an R UDF. This scenario demonstrates how to yield five Tuples each containing a string, integer, and boolean component from the source. Then, for each Tuple, we can yield five additional Tuples after modifying each Tuple’s integer component.
Source R UDF Tuple Operator
Here, the user writes R code to yield a List with three attributes: int_attr, str_attr, and bool_attr. Note that since R does not natively support generators, we import the coro package. The body for the function() part of the code must be an anonymous function (similar to a Python lambda function).
library(coro)
coro::generator(function() {
for (i in 1:5) {
tuple <- list(
int_attr = 1L, # R integer
str_attr = "A", # R string
bool_attr = TRUE # R logical (boolean)
)
yield(tuple)
}
})Next, the user writes a function to increment the int_attr component of the Tuple by the index taken from a for loop. In this case, we can yield five separate Tuples, all of which modify the original Tuple. Again, the body of function(tuple, port) must be an anonymous function.
library(coro)
coro::generator(function(tuple, port) {
for (i in 1:5) {
new_tuple <- tuple
new_tuple$int_attr <- new_tuple$int_attr + i
yield (new_tuple)
}
})Table API
What is R UDF Table API?
The Table API allows R code to process and return entire tables in a single operation. This functionality is particularly beneficial when dealing with large chunks of data that need to be processed or modified in bulk.
How does R UDF Table API Work?
The objective of the table API is for the user to write an R function that returns an R data.frame or any structure convertible to a data.frame in R, such as an R list, matrix, or vector. The provided function should accept two arguments: the table itself and the port. Currently, the port argument is unused but may be utilized in the future.
In the engine’s backend, the returned R data.frame is converted into an PyArrow Table using rpy2-arrow, facilitating seamless data transfer to the next operator.
When should R UDF Table API be used?
Users should employ the table API when they need to process or pass along bulk data in large, tabular chunks. Another suitable use case for the table API is when users need to modify an entire Table and return the entire modified result.
Table API: Example Code
Below is an example of simple usage of the table API in an R UDF. In this scenario, we aim to return a simple table from R containing three attributes and three rows of data. We then add a new row, resulting in a total of four rows of data.
The Source R UDF Table Operator example is as follows. Here, the user writes R code to return a data.frame with three attributes: Training, Pulse, and Stamina:
function() {
table <- data.frame(
Training = c("Strength", "Stamina", "Other"),
Pulse = c(100L, 150L, 120L),
Duration = c(60, 30, 45)
)
return(table)
}Next, in the R UDF Table Operator, the user writes a function to add a new row to the source Table:
function(table, port) {
# Note that the port argument is unused, this is intentional for now
new_row <- data.frame(
Training = "TEST",
Pulse = 123L,
Duration = 999
)
table <- rbind(table, new_row)
return(table)
}The final table will now contain a total of four rows.
In the final tuple, the int_attr will be incremented from 1 to 2.
Conclusion
The introduction of R UDF support in Texera marks a significant milestone, opening up new opportunities and use cases for the platform. This development paves the way for a broader range of users and applications, enriching the Texera ecosystem.
We hope that this work and insights serve as a solid foundation for further enhancements by other developers. It is our hope that future improvements will continue to be built on top of this foundation, expanding Texera’s capabilities.
Acknowledgements
We want to credit Prof. Chen Li for guiding us throughout this journey, Kun Woo (Chris) Park for being a user of R UDF, Cornell colleagues Prof. Shuibing Chen, Sally Lee, Dongliang Leng, for providing single-cell analysis R programs converted to the workflow in Figure 2, and the entire Texera Team.
